lt_l1.h File Reference

Layer 1 functions declarations. More...

#include "libtropic_common.h"

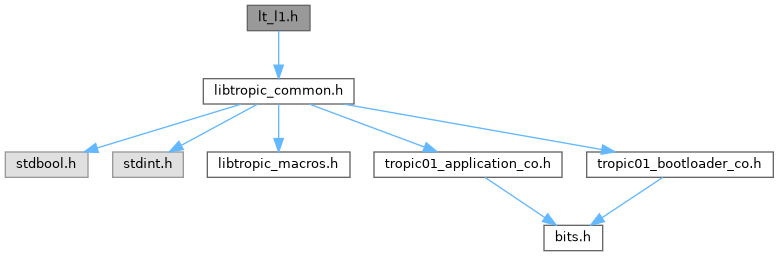

Include dependency graph for lt_l1.h:

Macros
#define	TR01_L1_CHIP_MODE_READY_bit   0x01
#define	TR01_L1_CHIP_MODE_ALARM_bit   0x02
#define	TR01_L1_CHIP_MODE_STARTUP_bit   0x04
#define	LT_L1_READ_MAX_TRIES   50
#define	LT_L1_READ_RETRY_DELAY   25
#define	LT_L1_TIMEOUT_MS_MIN   5
#define	LT_L1_TIMEOUT_MS_DEFAULT   70
#define	LT_L1_TIMEOUT_MS_MAX   150
#define	TR01_L1_GET_RESPONSE_REQ_ID   0xAA

Functions
lt_ret_t	lt_l1_read (lt_l2_state_t *s2, const uint32_t max_len, const uint32_t timeout_ms)
	Reads data from TROPIC01 into host platform.
lt_ret_t	lt_l1_write (lt_l2_state_t *s2, const uint16_t len, const uint32_t timeout_ms)
	Writes data from host platform into TROPIC01.

Detailed Description

Copyright

Copyright (c) 2020-2025 Tropic Square s.r.o.

License

For the license see file LICENSE.txt file in the root directory of this source tree.
