Declarations of wrappers for the port-specific functions. More...

#include <stddef.h>
#include "libtropic_common.h"

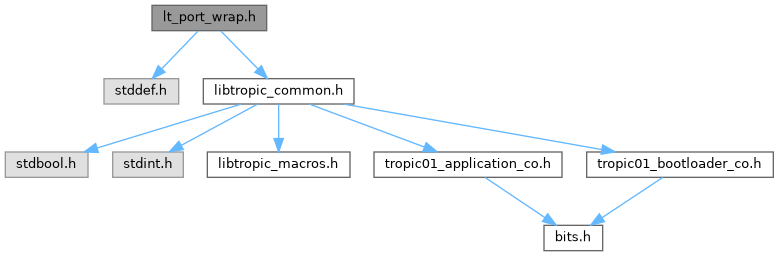

Include dependency graph for lt_port_wrap.h:

Functions
lt_ret_t	lt_l1_init (lt_l2_state_t *s2)
	Initializes handle and L1.

lt_ret_t	lt_l1_deinit (lt_l2_state_t *s2)
	Wipes handle and deinitializes L1. This is wrapper for platform defined function.

lt_ret_t	lt_l1_spi_csn_low (lt_l2_state_t *s2)
	Sets chip select pin low. This is wrapper for platform defined function.

lt_ret_t	lt_l1_spi_csn_high (lt_l2_state_t *s2)
	Sets chip select pin high. This is wrapper for platform defined function.

lt_ret_t	lt_l1_spi_transfer (lt_l2_state_t *s2, uint8_t offset, uint16_t tx_len, uint32_t timeout_ms)
	Does L1 transfer. This is wrapper for platform defined function.

lt_ret_t	lt_l1_delay (lt_l2_state_t *s2, uint32_t ms)
	Platform's definition for delay, specifies what host platform should do when libtropic's functions need some delay. This is wrapper for platform defined function.

lt_ret_t	lt_l1_delay_on_int (lt_l2_state_t *s2, uint32_t ms)
	Specifies what platform should do when waiting for signal from interrupt pin.

lt_ret_t	lt_random_bytes (lt_handle_t h, void buff, size_t count)
	Generate `count` random bytes using host's random number generator. This is a wrapper for platform defined function.

Detailed Description

License: For the license see LICENSE.md in the root directory of this source tree.
